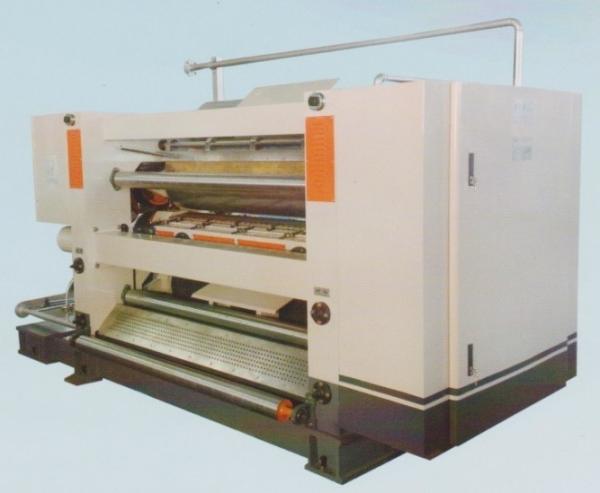

Multi-cassette Positive Pressure Single Facer Corrugator, Quick Change Roller, Single Facer Corrugation Machine

1) SF-D FMulti-cassette Positive Pressure Single Facer Corrugator Machine adopt negative pressure design, helps the flute paper to press evently and closer on surface of corrugating roller, to have perfect forming and even gluing on flute tip, better laminating with line paper to single faced cardboard.

2) Quick change corrugator roller in 15 munites, while replacing corrugating roller, the whole complete roller set with cassette to delivery into the machine matched and fixed by hydraulic system on base of machine.

3) Corrugating roller, pressure roller and gluing roller adopt high stability air bag control system, with pneumatic control buffer effect.

4) Gluing width motorized to match paper width, idle running motor for gluing roller to avoid glue dry. Gap between gluing roller and doctor roller adjust by eletrical, digital read out.

5) Moveable type gluing unit, convenient to clean and maintain.

6) Simple operation control system, touch screen with colorful displays operation state, easy operation.

7) Build-in pre-conditioner with proportional spraying device, to control flute paper temperature and moisture.
